Electronic Cloud Mirror
HS-DZYJ01A HS-DZYJ01B

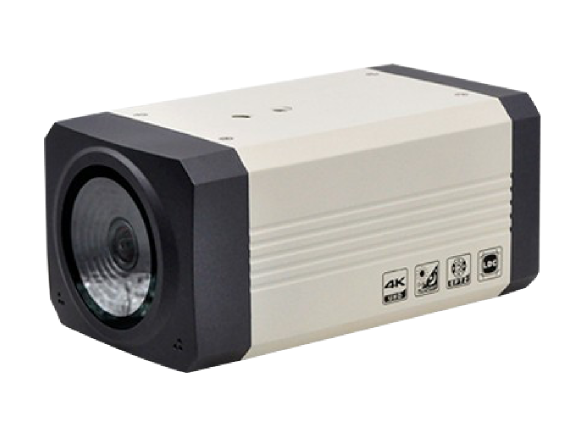

Intelligent Teaching Tracking Camera, specifically designed for blended learning, interactive teaching, and educational recording scenarios. Available in two models—Teacher Edition and Student Edition—installed on the front and rear walls of the classroom respectively. Equipped with a 4K UHD CMOS image sensor, it delivers ultra-clear presentation of the entire teaching scene. Built-in image recognition and intelligent algorithms—including smart tracking, intelligent directing, and smart whiteboard features—create rich interactive teaching visuals, delivering a vivid learning experience.

Downloads

Contact Us
Core Functionality
  • 4K Ultra HD picture quality
    Featuring a 1/2.8-inch UHD CMOS image sensor, it delivers up to 4K P30/25 video encoding output while maintaining backward compatibility with resolutions such as 1080p and 720p, ensuring crisp and detailed image quality.
  • Dual-camera design

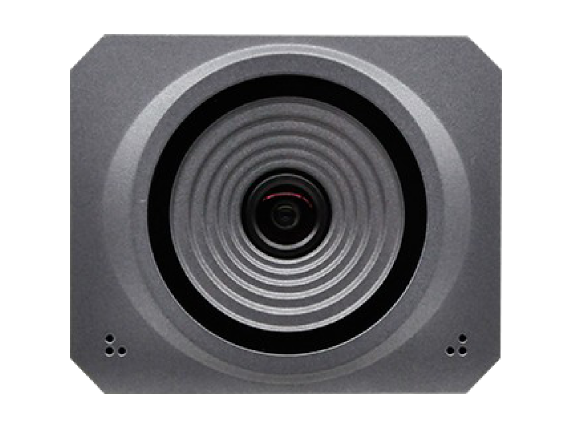

    The teacher's camera features a 42° wide-angle lens with autofocus, ensuring clear and focused capture of the instructor's teaching environment. The student cameras utilize a 95° low-distortion wide-angle lens, providing a broader field of view to effortlessly accommodate the entire classroom.
  • Three-port output

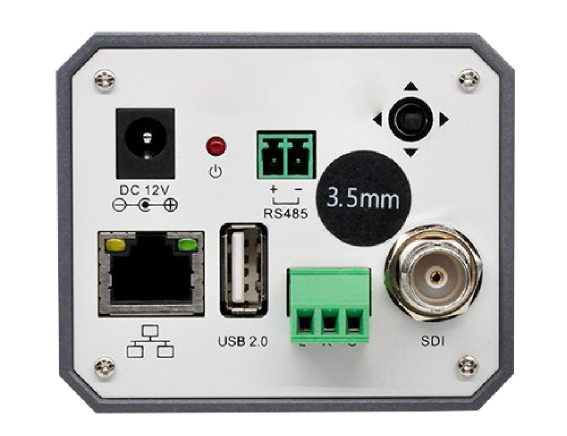

    Supports 3G-SDI interface with an effective transmission distance of up to 150 meters (1080P25). Simultaneous output via SDI, network, USB, and three channels.
  • Intelligent Teaching Tracking
    Built-in leading image recognition and tracking algorithms enable smooth, natural tracking effects without requiring any auxiliary positioning cameras or tracking hosts. Pre-installing different cameras allows for either teacher tracking or student tracking.
  • Smart Director
    Built-in image recognition, intelligent tracking, and smart directing algorithms automatically detect teacher-student interactions, seamlessly switching between wide shots of the teacher, close-ups of the teacher, close-ups of the blackboard, wide shots of students, and close-ups of students. This eliminates the need for a manual control room, delivering precise visual representation of classroom interactions.
  • Smart Whiteboard
    Built-in smart whiteboard algorithm automatically activates when the teacher writes on the board, generating an unobstructed view of the writing or a floating image above the teacher's silhouette to facilitate student learning and note-taking.
  • Supports PoC and PoE
    Supports PoC (Power Over Cable) and PoE (Power Over Ethernet) single-cable functionality, integrating power, video, audio, and control into a single cable.
Product Specifications
Sensor 1/2.8-inch CMOS, 8.46 million effective pixels
Scanning Method Progressive Scan
Lens Mount Type M12
Lens 1 (Teacher Unit) Focal Length: f=7.2mm, Horizontal Field of View: 42°
Lens 2 (Student Unit) Focal Length: f=2.8mm, Horizontal Field of View: 95°
Minimum Illumination 0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter 1/30s~1/10000s
White Balance Auto, Indoor, Outdoor, One-Touch, Manual, Custom Color Temperature
Digital Noise Reduction 2D,3D
Backlight Compensation Supported
EPTZ Supported
Autofocus Supported on Teacher Unit
HS-DZYJ01A HS-DZYJ01B Electronic Cloud Mirror / Highly favored by numerous clients. We are an integrated video conferencing system solution provider with 16 years of industry expertise, offering comprehensive services including R&D, manufacturing, sales, installation, and support.
