Products SIP Broadcast Intercom 调度台

Dispatch Host HY-DUT03

HY-DUT03

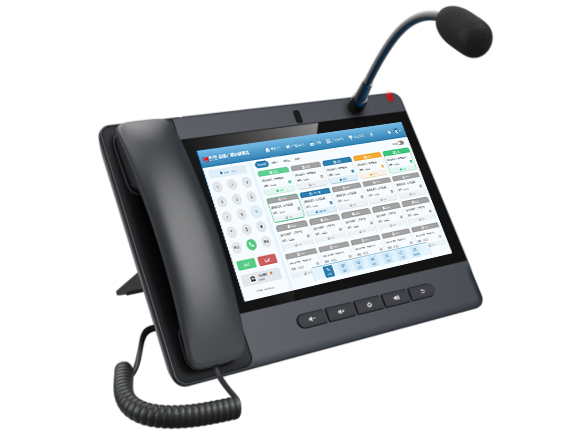

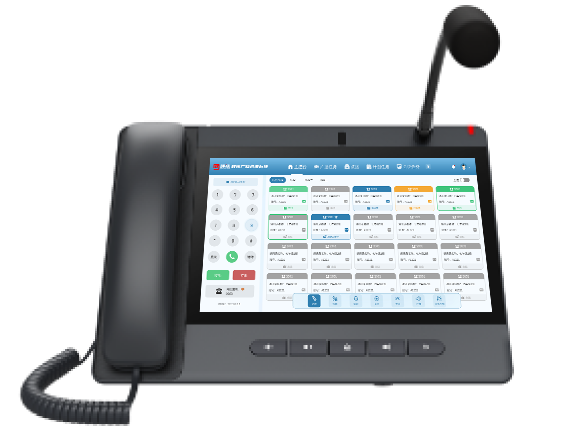

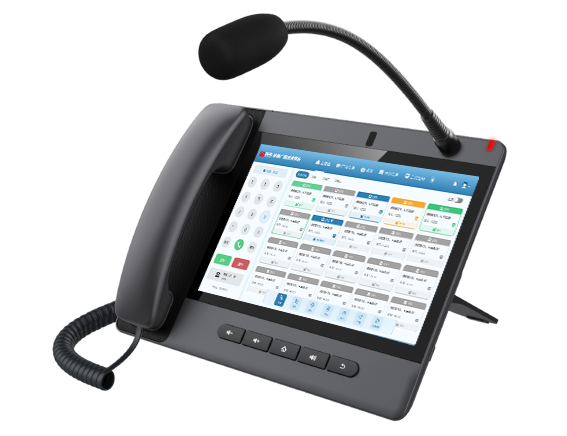

HY---DUT03 is a visual large-screen dispatch console specifically developed for industry users. It features a gooseneck microphone and PTM push-to-talk mute handle, supporting high-definition voice calls. Equipped with a 10.1-inch color HD touchscreen and running on the Android 9.0 operating system, it delivers a smoother and more intelligent user experience. Supporting standard SIP protocols, it functions as a management host for monitoring centers and command centers, enabling users to initiate calls, conduct two-way intercoms, monitor/surveil, and broadcast announcements to hosts and extensions within the managed jurisdiction.

Downloads

Contact Us

ProductFunction

Multi-device compatibility integration

Broad Terminal Adaptability Protocol Compatibility Assurance

01

Multi-device compatibility integration

Broad Terminal Adaptation

Supports connection of SIP terminals such as outdoor alarm columns, IP phones, and walkie-talkies to enable multi-device interconnection.

Protocol Compatibility Assurance

Based on the standard SIP protocol, it is compatible with terminals from different brands, reducing the difficulty of cross-device integration.
Visualized Centralized Management

Visualization of Terminal Status Convenient Group Management

02

Visualized Centralized Management

Visual Terminal Status

The interface displays real-time online/offline status of terminals, providing an intuitive overview of device operations.

Convenient Group Management

Supports terminal grouping and naming for quick target device retrieval, simplifying management tasks.
Partition / Global Broadcast

Precision Zone Broadcasting Global Emergency Broadcast

03

Partition / Global Broadcast

Precision Zone Broadcasting

Broadcast notifications within designated areas to deliver targeted messages and minimize information overload.

Global Emergency Broadcast

Initiate full-coverage broadcasts during emergencies to rapidly reach all terminals and deliver critical alerts.
Emergency Priority Scheduling

Emergency commands take priority; dispatch operations remain uninterrupted.

04

Emergency Priority Scheduling

Emergency Commands Take Priority

In critical situations, emergency commands automatically gain priority and take precedence in occupying communication channels.

Uninterrupted Dispatch

Upon detecting device anomalies, the system automatically maintains core dispatch links to ensure uninterrupted command transmission.
Two-way communication

Multi-mode Calling Real-time Voice Interaction

05

Two-way communication

Multi-mode Calling

Initiate one-to-one or group two-way intercom calls with crystal-clear voice quality, supporting point-to-point and point-to-multipoint communication.

Real-time Voice Interaction

Low call latency with instant response capability ensures rapid command transmission.
Automatic Fault Alerting

Real-time Fault Monitoring Multi-Endpoint Alert Notifications

06

Automatic Fault Alerting

Real-Time Fault Monitoring

Real-time monitoring of terminal failures and communication anomalies to promptly detect equipment issues.

Multi-Channel Alert Notifications

Alerts are sent via interface pop-ups, text messages, and other methods to remind staff to handle issues promptly.

Product Specifications

Dimensions

10.1 inches
Button

116 programmable buttons
SIP

20 SIP lines, supporting 10-party voice conferences and 3-party video conferences
camera

Built-in 8-megapixel camera
Decoding

G.722,Opus

Related Products

Four-Channel HD Encoder

This product supports 4-channel high-definition HDMI audio and video capture.

Learn moreLearn more

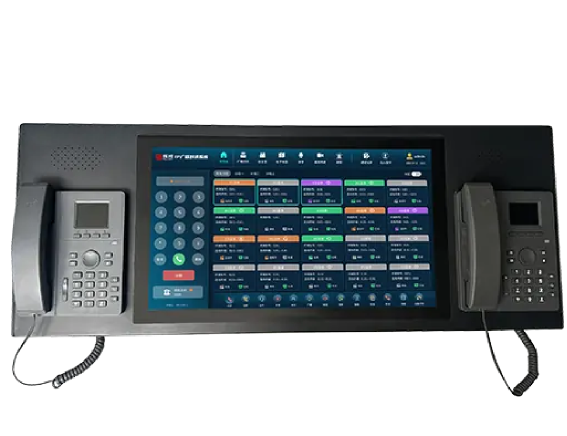

Broadcast Intercom Dispatch Console
